Setting Project Libraries

KiCad has two table files per project: sym-lib-table (symbols) and fp-lib-table (footprints). The default layout matches stock KiCad. For multi-board projects, Zeo adds a third scope (container) and a Share column in the Manage Libraries dialog that tells you the state of every row.

Open Preferences → Manage Symbol Libraries / Footprint Libraries → Project tab on a sub-project of a multi-board container. Every row shows one of three values in the Share column:

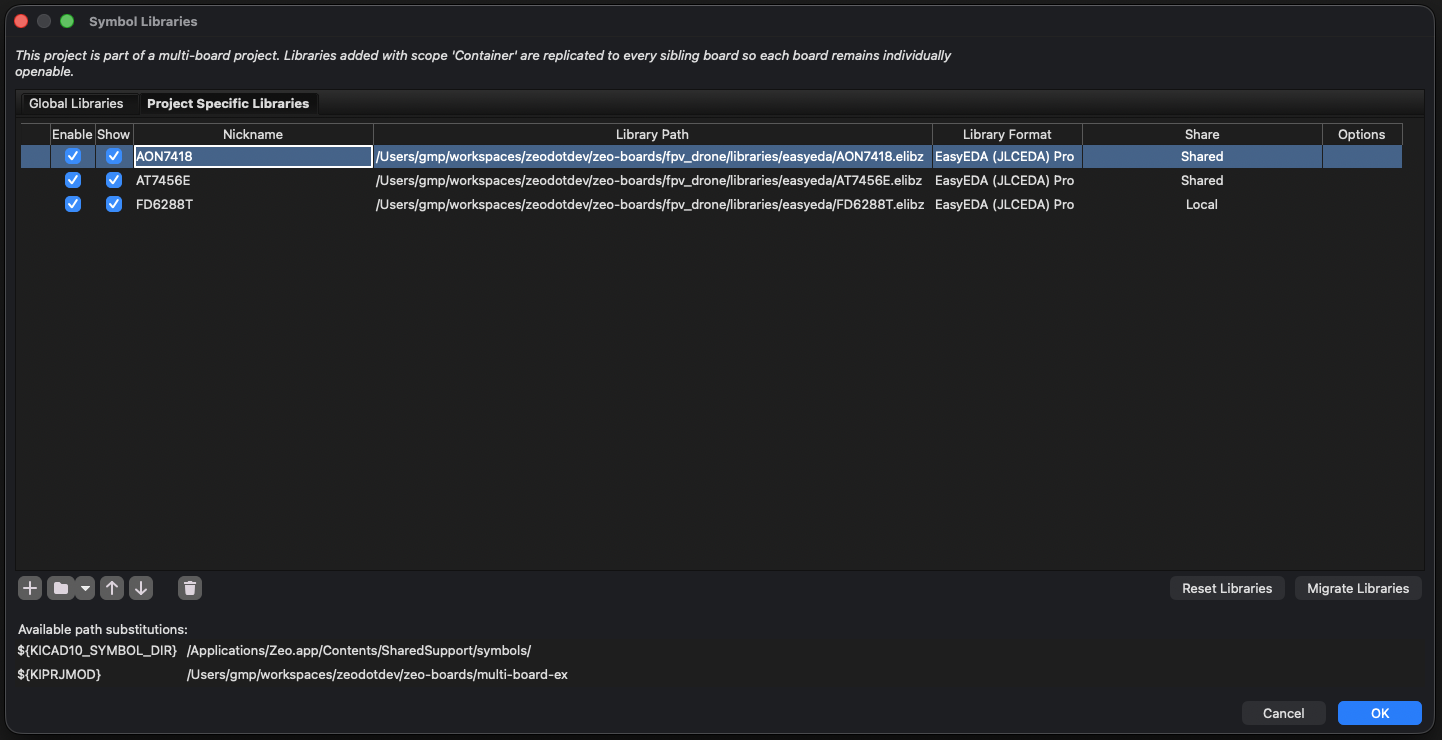

Library Example

Share value	Where the row lives	Why
Local	This sub-project's lib-table only	Added to this sub-project. Other sub-projects and the container do not see it.
Shared	This sub-project's lib-table AND the container's lib-table	Added at the container scope, then physically cascaded into this sub-project with a `shared=true` marker. Stays in sync with the container.
Conflict	This sub-project AND the container, with different URI or options	A container-shared row collided with a pre-existing Local row of the same nickname. Both stay on disk; the Local row wins lookups for this sub-project. Surface and resolve before the names diverge further.

The Share column is the fastest way to audit a sub-project's library state. Sort by Share, scan for Conflicts, then confirm Shared rows match what you expect.

The three scopes

Global: the user-wide tables in ~/Library/Preferences/kicad/ (or platform equivalent). Every project the user opens sees these. Stock KiCad behavior, no Share column entry.
Project (local to a sub-project): the lib-table in that project's directory. Shown as Local.
Container: rows on a multi-board container's lib-table. Physically replicated into every sub-project's lib-table with shared=true. Shown as Shared.

Container scope is physical replication, not a runtime tier. Each lib-table file is read directly. No runtime fallback to the container.

Adding to Global

Preferences → Manage Libraries → Global tab. The row goes into the user-wide table file. Visible from every project. Does not appear in the Project tab's Share column.

Adding to a single-board project

Preferences → Manage Libraries → Project tab. The row lands in that project's local lib-table. Share value: there is no Share column for standalone projects. The row is simply local to that project.

Adding to a multi-board container

From the container project: container library setup panel, or via mbs_setup / add_library. Zeo:

Writes the row to the container's lib-table.
Cascades a shared=true copy into every sub-project's lib-table.

Sub-projects then show this row as Shared.

If a sub-project already had a Local row with the same nickname:

URI and options match → the Local row is promoted in place. Share value flips from Local to Shared.
URI or options differ → the row is marked Conflict. Both rows stay on disk; the original Local row wins lookups for that sub-project.

Adding to a sub-project from inside the container

Open the sub-project's editor while the container is loaded and add a row via Manage Libraries → Project. The row lands in that sub-project's lib-table with shared=false. Share value: Local. It stays local to that sub-project; container saves do not promote Local rows.

To make a Local row available to every sub-project, promote it using share_library or the desktop promote-to-container action. After promotion the Share value becomes Shared on every sub-project.

Registering a sub-project with a container

When a sub-project is registered (new-project wizard or mbs_setup action="add_sub_project"), its lib-tables are left as-is. No merge step at registration time.

The next container save or sub-project load runs reconciliation:

Container rows absent from the sub-project: copied in. Share value: Shared.
Sub-project rows matching a container row by content: promoted. Share value: Local → Shared.
Sub-project Local rows colliding with a different container row: Share value: Local → Conflict.
Pre-existing Local rows with no collision: untouched. Share value stays Local.

Sub-projects are individually addressable

A sub-project's .kicad_pro is fully operational on its own. Open it directly (without the container) and it loads only:

Its own lib-tables
The Global tables

The container reconciliation step only runs when the sub-project knows its container path AND the loading project is not the container itself. Open the sub-project standalone: container path is empty, reconciliation is a no-op. Any shared=true rows already on disk behave like ordinary local rows. The Share column is not shown for standalone-opened projects.

You can hand a boards/board1/ directory to someone else and they can build it without the container.
